Create a new directory named Payments_Hub_Merchant_Onboarding_Demo. It will contain all your Python code.

Navigate to the Payments_Hub_Merchant_Onboarding_Demo directory and run the following command to create a virtual environment called payments_hub_merchant_onboarding_demo:

python -m venv payments_hub_merchant_onboarding_demo

After creating the virtual environment, you need to activate it. On Windows, run the following command:

payments_hub_merchant_onboarding_demo\Scripts\activate

To activate the virtual environment on Linux or Mac, run this command:

source payments_hub_merchant_onboarding_demo/bin/activate

Once the virtual environment is activated, install the requests package by running the following command:

pip install requests

Before accessing the Merchant Boarding API, you must authenticate by calling the auth endpoint. Make a POST request and provide the following keys and values in the x-www-form-urlencoded format:

• grant_type: client_credentials
• scope: all
• client_id: your_client_id
• client_secret: your_client_secret

If your request is successful, you will receive a 200 OK success code and a bearer token that is valid for five minutes. You will need to include this bearer token in the headers of subsequent requests to the Merchant Boarding API in the format Bearer token.

In the payments_hub_merchant_onboarding_demo directory, create a file named get_oauth_token.py and add the following code to it:

import requests
import pprint

# Set the request parameters
url = 'https://enrollment-api-auth.paymentshub.com'
path = "/oauth/token"

# Set proper headers
headers = {'Content-Type': 'application/x-www-form-urlencoded'}

# Set the URL-encoded body
grant_type = 'client_credentials'
scope = 'all'
client_id = 'your_client_id'
client_secret = 'your_client_secret'

data = {'grant_type': grant_type, 'scope': scope, 'client_id': client_id, 'client_secret': client_secret}

# HTTP request
response = requests.post(url + path, headers=headers, data=data)

# Check for HTTP codes other than 200
if response.status_code != 200:
    pprint.pprint(f'Status: {response.status_code} Headers: {response.headers} Error Response: {response.json()}')
    exit()

# Get the JSON response
data = response.json()
pprint.pprint(data, indent=2)

Remember to replace your_client_id and your_client_secret with your actual values.

The code above calls the authentication endpoint, and if successful, it prints out an access token that you can use for subsequent calls to the Merchant Boarding API.

To execute the file, run the following command on the terminal from the root directory:

python get_oauth_token.py

The successful output will look as follows:

{ 'access_token': 'access_token_value',
  'expires_in': 300,
  'scope': 'create',
  'token_type': 'bearer'}

The output is a JSON object with the following keys: access_token, expires_in, token_type, and scope. You will need to use the access_token on further API calls, but bear in mind that it expires after three hundred seconds, or five minutes.

After authenticating, call the Merchant Boarding API and create a new application. Before starting this new application, either create an application template or note the plan ID of an existing template.

For this tutorial, you will make a call to the Sandbox endpoint /enroll/application and provide the following mandatory fields: agent, applicationName, externalKey, and plan. The following fields are optional: shipping, principals, business, bankAccount, and epxHierarchy.

• agent: the agent or sales rep ID
• applicationName: string that can be used to identify the application
• externalKey: unique identifier for application
• plan: equipment plan object
• shipping: shipping information model
• principals: business principal object
• business: business object
• bankAccount: bank account object
• epxHierarchy: enrollment EPX customer hierarchy object

In the payments_hub_merchant_onboarding_demo directory, create a file called create_application.py and add the following code to it:

import requests
import json
import pprint

# Set the request parameters
url = 'https://enrollment-api-sandbox.paymentshub.com'
path = '/enroll/application'

bearer_token = 'PUT_YOUR_ACCESS_TOKEN_HERE'

# Set proper headers
headers = {'Content-Type': 'application/json',
           'Authorization': 'Bearer ' + bearer_token}

# Set the mandatory urlencoded body
payload = {
    "agent": "PUT_YOUR_AGENT_ID_HERE",
    "applicationName": "Test Application 1",
    "externalKey": "012345-ABC",
    "plan": {
        "planId": "PUT_YOUR_PLAN_ID_HERE"
    },
    "principals": [
        {
            "firstName": "Jane",
            "lastName": "Jackson",
            "socialSecurityNumber": "12345678",
            "dateOfBirth": "1955-12-25",
            "phoneNumber": "1234567890",
            "email": "user@example.com",
            "street": "123 Selah Way",
            "street2": "Suite 123",
            "zipCode": "12345",
            "city": "South Burlington",
            "state": "VT",
            "equityOwnershipPercentage": 50,
            "title": "ceo",
            "isPersonalGuarantor": True,
            "driverLicenseNumber": "ABC1234567890",
            "driverLicenseIssuedState": "MI"
        },
        {
            "firstName": "Jeremy",
            "lastName": "Coelman",
            "socialSecurityNumber": "12345678",
            "dateOfBirth": "1977-12-25",
            "phoneNumber": "1234567890",
            "email": "user@example.com",
            "street": "1234 Finwood Drive",
            "zipCode": "12345",
            "city": "Red Bank",
            "state": "NJ",
            "equityOwnershipPercentage": 50,
            "title": "manager",
            "isPersonalGuarantor": False,
            "driverLicenseNumber": None,
            "driverLicenseIssuedState": None
        }
    ],
    "business": {
        "corporateName": "Joe's Spaceage Stereo",
        "dbaName": "Joe's Stereo",
        "businessType": "C",
        "federalTaxIdNumber": "123567890",
        "federalTaxIdType": "EIN",
        "mcc": "1234",
        "phone": "1234567890",
        "email": "user@example.com",
        "websites": [
            {
                "url": "https://example.com",
                "websiteCustomerServiceEmail": "customer-service-email@example.com",
                "websiteCustomerServicePhoneNumber": "1234567890"
            }
        ],
        "averageTicketAmount": 5000,
        "averageMonthlyVolume": 1250000,
        "highTicketAmount": 125000,
        "merchandiseServicesSold": "Audio components and services",
        "percentOfBusinessTransactions": {
            "cardSwiped": 65,
            "keyedCardPresentNotImprinted": 20,
            "mailOrPhoneOrder": 0,
            "internet": 15
        },
        "businessContact": {
            "firstName": "Roy",
            "lastName": "Martin",
            "socialSecurityNumber": "123456789",
            "dateOfBirth": "1947-11-05",
            "street": "123 Late Avenue",
            "street2": "",
            "zipCode": "12345",
            "city": "South Burlington",
            "state": "VT",
            "phoneNumber": "1234567890",
            "email": "user@example.com"
        },
        "statementDeliveryMethod": "electronic",
        "businessAddress": {
            "dba": {
                "street": "1234 Clinton St",
                "city": "South Burlington",
                "state": "VT",
                "zipCode": "12345"
            },
            "corporate": {
                "street": "1234 Sun Valley Rd",
                "city": "South Burlington",
                "state": "VT",
                "zipCode": "12345"
            },
            "shipTo": {
                "street": "1234 Saint James Drive",
                "city": "South Burlington",
                "state": "VT",
                "zipCode": "12345"
            }
        }
    },
    "bankAccount": {
        "abaRouting": "12345678",
        "accountType": "checking",
        "demandDepositAccount": "12345678"
    }
}

# Convert the payload to JSON String
json_payload = json.dumps(payload)

# Do the HTTP request
response = requests.post(url + path, headers=headers, data=json_payload)

# Check for HTTP codes other than 200
if response.status_code != 200:
    pprint.pprint(f'Status: {response.status_code} Headers: {response.headers} Error Response: {response.json()}')
    exit()

# Get the JSON response
data = response.json()
pprint.pprint(data, indent=2)

This code will create a new application.

Remember to replace PUT_YOUR_ACCESS_TOKEN_HERE with the valid bearer token that you received after running get_oauth.py. Also, replace PUT_YOUR_AGENT_ID_HERE and PUT_YOUR_PLAN_ID_HERE with your credentials. You can keep the values provided for principals, business, and bank_account_details or replace the values with the details you want to test with.

To execute the file, run the following command on the terminal from the root directory:

python create_application.py

A successful request will return a 201 status code and details of the application you created. The status is success, which signifies that your application was successfully created.

If your request is not valid, you will receive a 400 Bad Request response, and if you use an invalid or expired token, you will receive a 401 Invalid authorization response.

After creating the application, the next step is to send it to the merchant for completion. In production, an email with a link to the application will be sent to the merchant. The endpoint used is /enroll/application/merchant/send/key/{externalKey}, and the method is PUT. The externalKey should match the externalKey used when creating the application; in this case, it was 012345-ABC.

In the payments_hub_merchant_onboarding_demo directory, create a file called send_application.py and add the following code to it:

import requests
import pprint

# Set your access token
bearer_token = 'PUT_YOUR_ACCESS_TOKEN_HERE'

# Set the external key
externalKey = '012345-ABC'

# Set the request parameters
url = 'https://enrollment-api-sandbox.paymentshub.com'
path = '/enroll/application/merchant/send/key/' + externalKey

# Set proper headers
headers = {'Content-Type': 'application/x-www-form-urlencoded',
           'Authorization': 'Bearer ' + bearer_token}

# Do the HTTP request
response = requests.put(url + path, headers=headers)

# Check for HTTP codes other than 200
if response.status_code != 200:
    pprint.pprint(f'Status: {response.status_code} Headers: {response.headers} Error Response: {response.json()}')
    exit()

# Get the JSON response
data = response.json()
pprint.pprint(data, indent=2)

Run the script using the following command:

python send_application.py

The successful output will look as follows:

{ 'data': { 'applicationStatus': 'waiting for merchant',
            'merchantId': None,
            'underwritingStatus': 'Pending Submission'},
  'link': '/application/merchant/send/key/012345-ABC',
  'status': 'success'}

After you send the application, the merchant will complete it. Before the completed application can be sent for underwriting review, it must be validated to check that the data the merchant entered meets the parameter requirements.

The endpoint to use here is /enroll/application/validate/{externalKey}. This endpoint validates that the data entered in the application meets the parameter requirements before the application is submitted for underwriting.

In the payments_hub_merchant_onboarding_demo directory, create a file called validate_application.py and put the following code in it:

import requests
import pprint


# Set the external key
externalKey = 'externalKey'

# Set the request parameters
url = 'https://enrollment-api-sandbox.paymentshub.com/enroll/application/validate/' + externalKey

# Set proper headers
headers = {'Content-Type': 'application/x-www-form-urlencoded',
           'Authorization': 'Bearer PUT_YOUR_TOKEN_HERE'}

# Do the HTTP request
response = requests.get(url, headers=headers)

# Check for HTTP codes other than 200
if response.status_code != 200:
    print('Status:', response.status_code, 'Headers:', response.headers, 'Error Response:', response.json())
    exit()

# Get the JSON response
data = response.json()
pprint.pprint(data, indent=2)

Run the following command to execute the script:

python validate_application.py

The successful output will look as follows:

{ 'data': {'errors': [], 'readyToSubmit': True},
  'link': '/application/validate/012345-ABC',
  'status': 'success'}

A success status means that there are no errors and that the application can now be submitted to underwriting.

If your application validation is successful, the last step is to submit the application to underwriting. The endpoint to submit the application is /enroll/application/submit/{externalKey}.

In the payments_hub_merchant_onboarding_demo directory, create a file called submit_application.py and add the following code to it:

import requests
import pprint

# Set the external key
externalKey = 'externalKey'

# Set the request parameters
path = '/enroll/application/submit/' + externalKey

url = 'https://enrollment-api-sandbox.paymentshub.com' + path

# Set proper headers
headers = {'Content-Type': 'application/x-www-form-urlencoded',
           'Authorization': 'Bearer PUT_YOUR_TOKEN_HERE'}

# Do the HTTP request
response = requests.put(url, headers=headers)

# Check for HTTP codes other than 200
if response.status_code != 200:
    print('Status:', response.status_code, 'Headers:', response.headers, 'Error Response:', response.json())
    exit()

# Decode the JSON response into a dictionary and use the data
data = response.json()
print(data)

Remember to replace PUT_YOUR_TOKEN_HERE with your actual token.

To execute the script, run the following command:

python submit_application.py

The successful output will look as follows:

{ 'data': { 'applicationStatus': 'finalized',
            'merchantId': '3130034240103',
            'underwritingStatus': 'Enrollment'},
  'link': '/application/submit/012345-ABC',
  'status': 'success'}

The applicationStatus value of finalized signifies that the application was successfully submitted.

The code for the web application user interface is in four main files, index.html, packages.json, proxy.js and server.js.

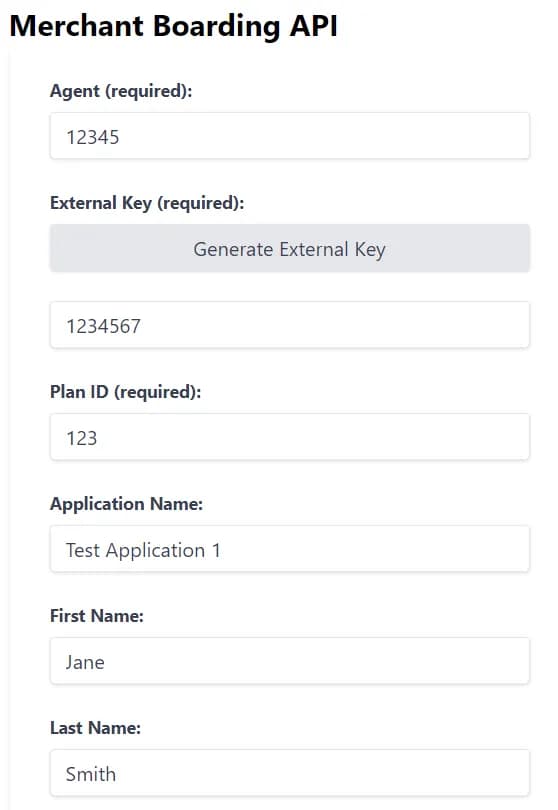

The HTML in the index.html file creates a form with the fields required to create a merchant application. It also has JavaScript code enclosed between the script tags that fetches a token and then uses it to create a merchant application.

The form comes pre-populated with test values that you can replace before you submit your application. Be sure to complete the agent, external key, and plan id fields before you submit as you can't submit the application if they are not completed.

The form also has two buttons at the bottom: Generate Token and Submit. The Generate Token button is first used to get the authentication token after which the Submit button submits the application.

The packages.json file contains metadata about the application and also lists the dependencies required.

The proxy.js file is necessary to avoid cross-origin resource sharing (CORS) issues . The proxy is responsible for sending API calls to the North API.

Remember to replace your_client_id and your_client_secret with your credentials.

And, lastly, the server.js file serves the index.html page for the user interface.

To run the application, run the following command on the terminal to install the dependencies: npm install

Next, run the command node proxy.js to start the proxy. You should get the following output:

Server running at http://localhost:3001

Open another terminal and run the command node server.js to start the server script that's responsible for serving the user interface, ie the index.html page. You should get the following output:

Server is running on http://localhost:3000

On the form, click on Generate Token to get an auth token. Wait for the modal to confirm that you now have a token.

You will also see the token displayed on the terminal that is running proxy.js:

Response: {
access_token: 'access_token_value',
expires_in: 300,
token_type: 'bearer',
scope: 'create'
}

Click on Submit to submit the form. The auth token will be automatically added to the request in proxy.js, a payload will be created using the details in the form, and it will be sent to the /enroll/application/submit endpoint.

You will get a confirmation that the merchant application was successfully created.
